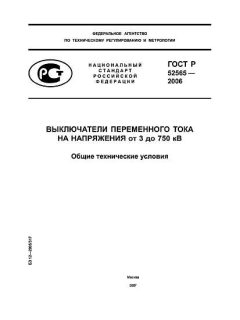

GOST R 52565-2006 PDF

Full title and description

GOST R 52565-2006 — "Alternating-current circuit‑breakers for voltages from 3 to 750 kV. General specifications" (Русское наименование: «Выключатели переменного тока на напряжения от 3 до 750 кВ. Общие технические условия»). Стандарт устанавливает общие технические требования и методы испытаний для высоковольтных выключателей и их приводов, предназначенных для коммутации электрических цепей в трёхфазных сетях переменного тока.

Abstract

Standard GOST R 52565-2006 defines classification, rated characteristics, type and routine tests, insulation and switching requirements, mechanical and electrical performance, markings and documentation for alternating‑current circuit‑breakers with nominal voltages from 3 kV to 750 kV. The document harmonizes key provisions with IEC 62271‑100 and related IEC documents to align Russian technical requirements with international practice.

General information

• Status: Active / действующий.
• Publication date: Approved 23 August 2006; came into force (effective date) 1 April 2007.
• Publisher: National standard of the Russian Federation — Federal Agency on Technical Regulating and Metrology (Rosstandart) / Национальный стандарт РФ (утверждён Росстандартом).
• ICS / categories: ICS 29.130.10 (high-voltage switchgear and circuit‑breakers); KGS (classification) E72 / Electrical engineering.
• Edition / version: Designation ГОСТ Р 52565‑2006 (original 2006 edition; current national standard text in force since 2007).
• Number of pages: Approximately 97 pages in typical published PDF editions (commercial catalogues and national repositories list ~97 pages).

Scope

The standard applies to alternating‑current circuit‑breakers (including their drives) intended for switching under normal and fault conditions in three‑phase AC systems of 50 Hz with nominal voltages from 3 kV up to and including 750 kV. It covers classification, rated values and characteristics, technical requirements, test methods (type and routine), markings, and documentation necessary for design, manufacture and testing of such circuit‑breakers. The standard is used for both indoor and outdoor equipment and for breakers installed in metal-enclosed switchgear.

Key topics and requirements

• Voltage range and rated values: nominal system voltages from 3 kV to 750 kV and associated rated insulation and switching characteristics.
• Classification by installation type (indoor, outdoor, within metal‑enclosed switchgear) and by construction/arc‑extinguishing medium.
• Electrical performance requirements: rated currents, short‑circuit breaking and making capacities, duty cycles and switching sequence tests.
• Insulation and dielectric tests, including impulse and power‑frequency withstand voltages and clearances.
• Transient recovery voltage (TRV) / recovery characteristic guidance used for selecting breakers and for coordination with system parameters.
• Mechanical performance, endurance (operations), interlocks, drives and auxiliary equipment requirements.
• Reference and alignment with IEC standards (notably IEC 62271‑100 and IEC 60694) where applicable.

Typical use and users

Primary users are power system designers, utility engineers, switchgear and circuit‑breaker manufacturers, testing and certification laboratories, procurement/specification writers, and maintenance personnel. The standard is used when specifying, testing, selecting and verifying high‑voltage circuit‑breakers for substations, transmission and distribution systems and industrial high‑voltage installations. Manufacturers often cite compliance with GOST R 52565‑2006 when supplying equipment to markets that require Russian national standards.

Related standards

Key related standards and documents referenced or harmonized with GOST R 52565‑2006 include IEC 62271‑100 (high‑voltage switchgear — circuit‑breakers), IEC 60694 (common specifications for high‑voltage switchgear), older national standards such as GOST 687‑78 (where applicable), and other GOST/GOST‑R documents dealing with surge arresters, insulation and test methods. Users commonly consult the IEC 62271 series for complementary technical details and international test practices.

Keywords

circuit‑breaker, high‑voltage, switchgear, GOST R, 3–750 kV, TRV (transient recovery voltage), dielectric tests, breaking capacity, IEC 62271‑100, switch drives.

FAQ

Q: What is this standard?

A: GOST R 52565‑2006 is the Russian national standard specifying general technical requirements and test methods for alternating‑current circuit‑breakers rated for nominal voltages from 3 kV to 750 kV.

Q: What does it cover?

A: It covers classification, rated characteristics, insulation and switching requirements, mechanical and electrical tests (type and routine), markings, documentation and recommendations for selection and application of circuit‑breakers and their drives.

Q: Who typically uses it?

A: Utilities, substation designers, manufacturers of high‑voltage breakers and switchgear, test laboratories, certification bodies and maintenance/asset‑management teams use this standard for specification, testing and acceptance of breakers.

Q: Is it current or superseded?

A: As of the latest national catalogues and repositories the standard is listed as active (действующий). It was approved on 23 August 2006 and put into effect on 1 April 2007. Users should verify whether any later amendments or replacements have been issued for a given project or procurement.

Q: Is it part of a series?

A: It belongs to the body of GOST/GOST‑R standards covering high‑voltage apparatus and switchgear and is harmonized with the IEC 62271 series; implementers routinely use IEC documents alongside GOST R 52565‑2006 for more detailed methods or complementary requirements.

Q: What are the key keywords?

A: circuit‑breaker, high‑voltage, switchgear, TRV, dielectric tests, breaking capacity, GOST R, IEC 62271‑100.
